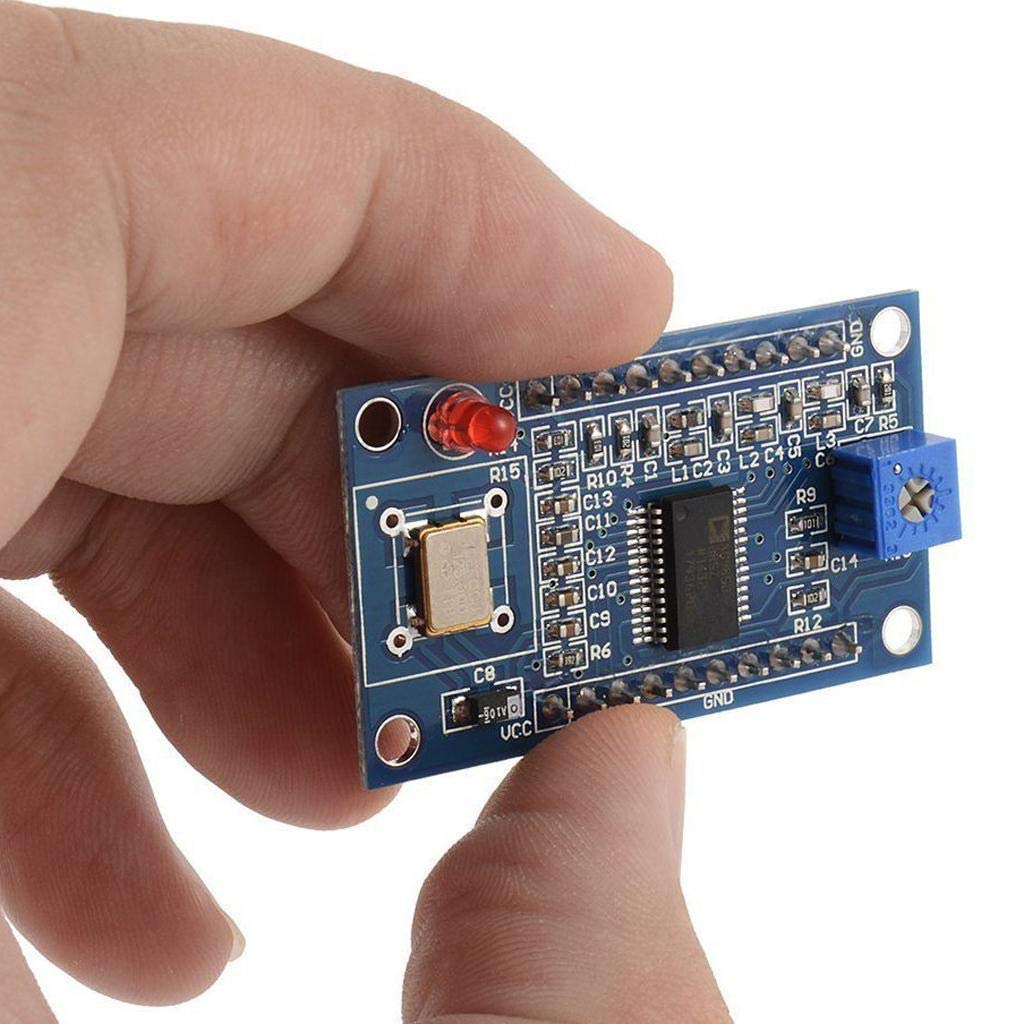

HiLetgo DDS AD9850 Signal Generator Module 0-40MHz Sine Wave and 2 Square Wave Output IC Test Equipment
Product details
| Management number | 247345347 | Release Date | 2026/08/16 | List Price | US$8.40 | Model Number | 247345347 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features:Generate the DA reference pin (PIN12) leads to facilitate the application of the output waveform amplitude adjustment.Comparator reference input voltage generated by the variable resistor, adjust the resistance can be different duty cycle square waveSpecification:Model: AD9850. Color:as shown in the pictures. Material: durable PCB board and metal. Dimension (L*W): about 4.5cm x 2.6cm. Package Included: 1 * DDS AD9850 Signal Generator Module
- AD9850 adopts 125MHz active crystal.
- Can output 2 sine waves and 2 square waves.
- AD9850 frequency range: 0-40MHz. Square Wave: 0-1MHz.
- Using 70MHz low-pass filter to make the waveform of the SN ratio better
- The after harmonic becomes bigger and bigger when the frequency is between 20-30MHz,and the wave form becomes unclean.
| ASIN | B01J7XPWNU |
|---|---|
| Item Weight | 0.01 ounces |
| Manufacturer | HiLetgo |
| Item model number | 3-01-0049-C |
| Package Dimensions | 2 x 1.3 x 0.1 inches |
